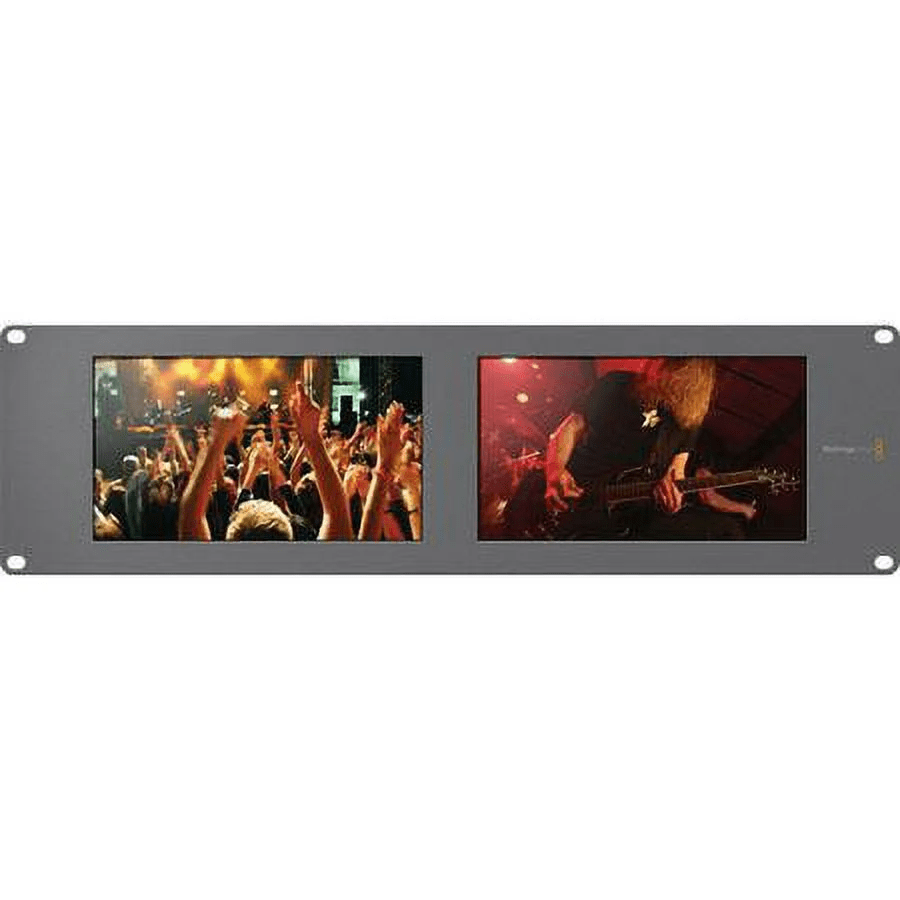

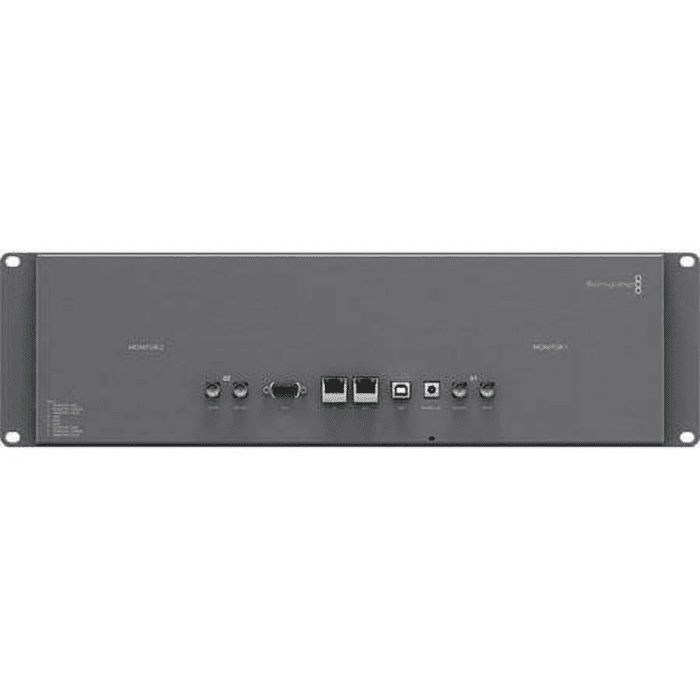

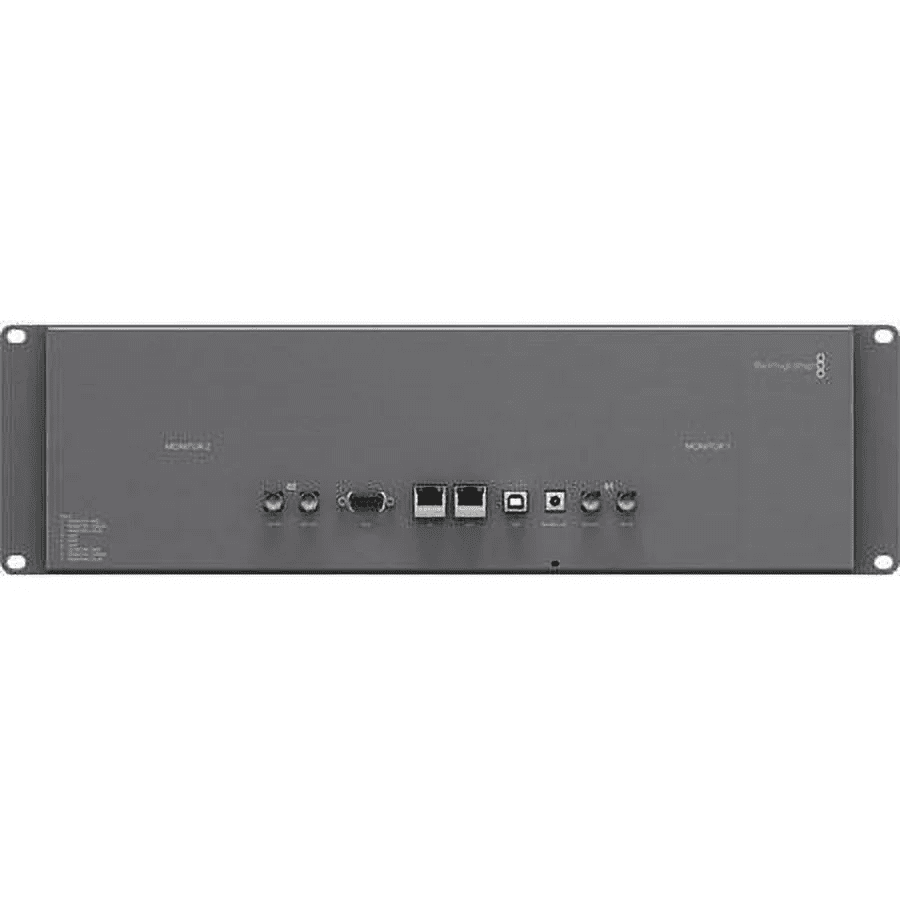

Blackmagic Design Smartview Duo Dual 8in LCD Monitors, 800×480

• SDI Video Input

  Switchable between SD, HD and 3 Gb/s SDI. Reclocked loop through output

• Multi Rate Support

  Auto detection of 2K, HD or standard definition inputs

• Updates and Configuration

  Via USB 2.0 high speed (480 Mb/s)

• Ethernet

  10/100 BaseT with loop through

• Tally

  9-pin D connector

• SDI Format Support

  525i59.94, 625i50, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98,1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97,1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080p/23.98, 2048x1080p/24, 2048x1080p/25,2048x1080PsF/23.98, 2048x1080PsF/24, 2048x1080PsF/25, 2048x1556PsF/23.98, 2048x1556PsF/24,2048x1556PsF/25

• SDI Compliance

  SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M

• SDI Color Space

  REC 601, REC 709

• SDI Auto Switching

  Automatically selects between SD, HD and 3 Gb/s SDI

• Video Sampling

  4:2:2 and 4:4:4

• Color Precision

  10-bit

• Software Control

  Mac OS X and Windows

• Settings Control

  Via USB or Ethernet

• Rack Height

  3 Rack Units

• Displays

  2

• Display Size

  8″ diagonal

• Display Element

  TFT Active Matrix LCD

• Display Resolution

  800 x 480 pixels

• Response

  < 15 ms

• Contrast Ratio

  Typically 500:1

• Color Depth

  16.7 Million Colors

• Display Orientation

  Displays can rotate upside down for optimum viewing angle

• Firmware Upgrade

  Via included firmware updater software

• Power Supply

  12V universal power supply included with international socket adapters for all countries

• Power Consumption

  < 20 Watts

• Operational Voltage Range

  12V – 15V
