Accurate color reproduction and a detailed color adjustment function enable a beautiful multiscreen display with little variation in colors. The ultra-narrow bezel makes the boundary line of the screen less conspicuous even in a multiscreen configuration and enables a natural display similar to a single image. The built-in HDMI and DisplayPort input and output terminals support 4K video QFHD signals. High-resolution 4K image daisy chaining is supported, resulting in an impressively large screen that does not spoil the quality of 4K video, even in a multiscreen setup.

• This monitor is perfect for digital signage applications.
• Display diagonal size is 55″.

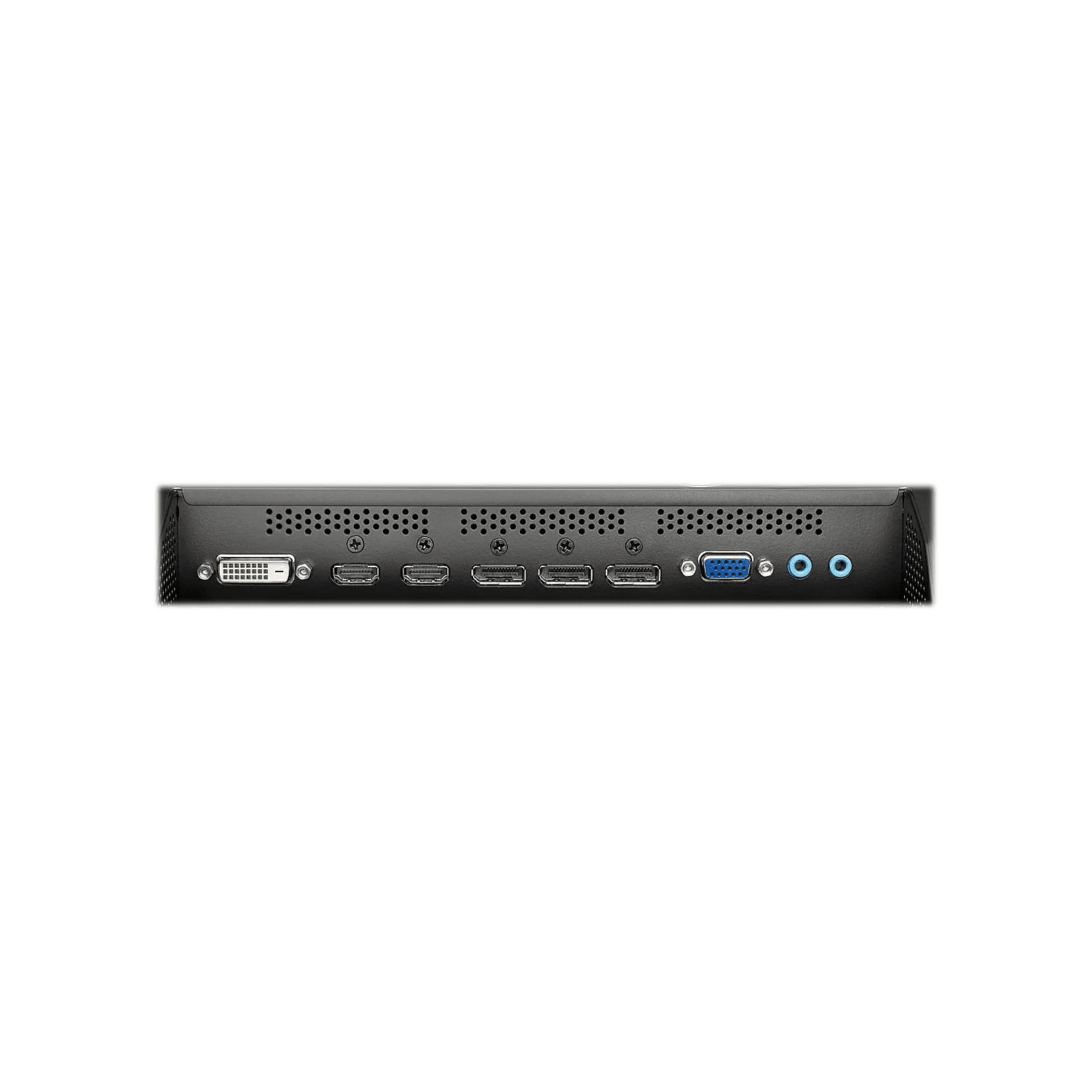

• Input signal ports: DVI, HDMI, VGA , DisplayPort.
• Features VESA 400 x 400mm mount interface.
• Dimensions: 26.94″H x 47.77″W x 4.1″D, weight: 56.2 lbs.
• Meets or exceeds VCCI, RoHS, FCC, RCM, ISO 9241-307, BSMI, REACH, PSB, TUV S, SASO, TUV GS, cUL, and UL standards.
• Features full 1920 x 1080 HD resolution and a 178-degree viewing angle.

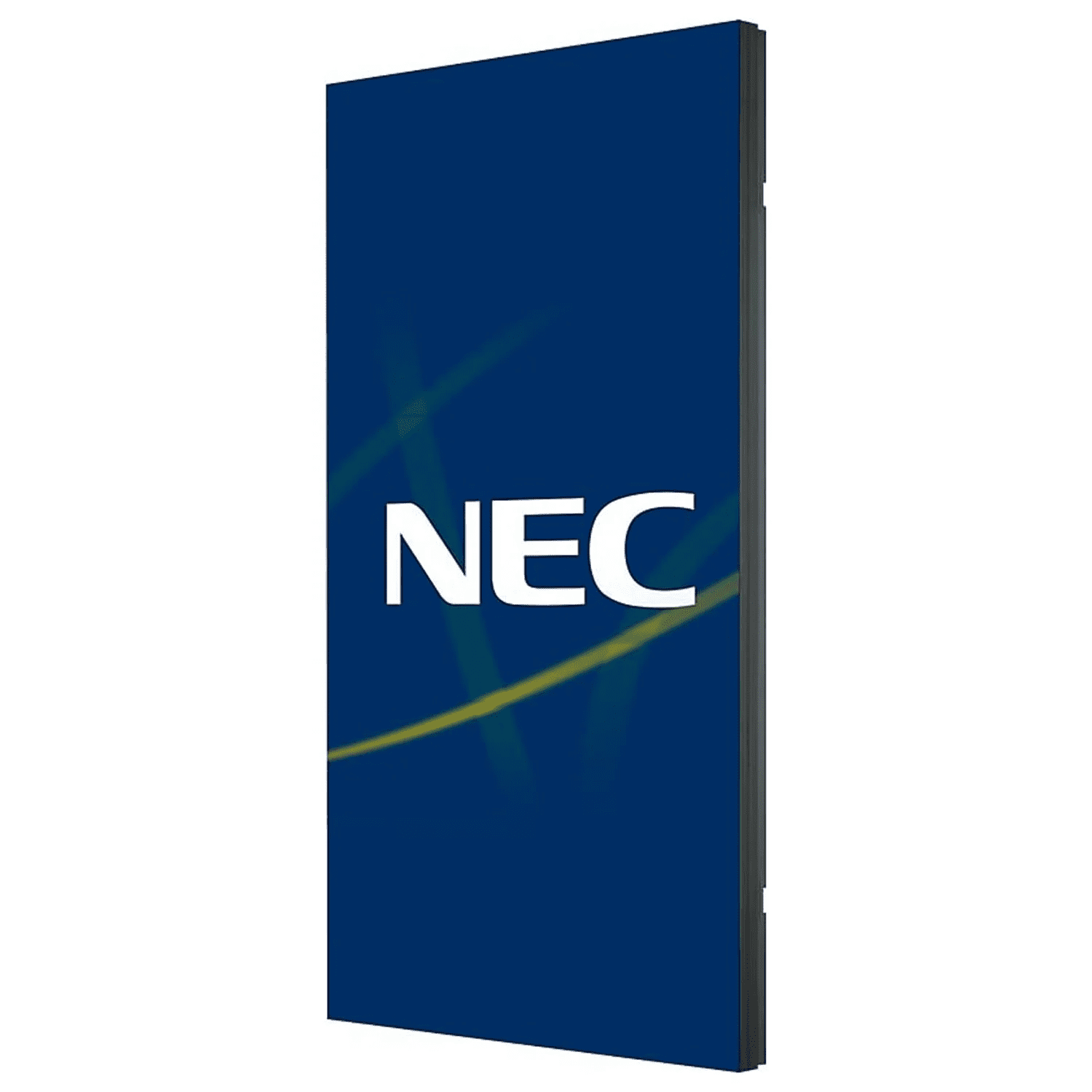

• Landscape and portrait orientations are supported.
• Operates at temperature of 32 – 104 deg F at 10 – 90% non condensing humidity.

• Sold as 1 Each.

• Panel Technology

  S-IPS with Direct LED backlights

• Active Screen Area (W x H)

  47.6 x 26.7″ (1209.6 x 680.3mm)

• Screen Size

  55″ (138.8mm)

• Aspect Ratio

  16:9

• Pixel Pitch

  0.630mm

• Brightness

  500 cd/sq m

• Contrast Ratio (typ.)

  >1700:1

• Viewing Angle

  178 / 178 Degree (at contrast ratio > 10:1)

• Response Time (typ.)

  8ms (gray-to-gray)

• Panel Refresh Rate

  60Hz

• Haze Level

  Pro (28%)

• Supported Orientation

  Landscape; Portrait

• Horizontal Frequency

  26 – 134kHz

• Vertical Frequency

  23 – 86Hz

• Native Resolution

  1920 x 1080

• Supported on DisplayPort and HDMI

  3840 x 2160;
  1920 x 1080;
  1600 x 1200;
  1360 x 768;
  1280 x 1024;
  1280 x 768;
  1080i;
  1080p;
  1024 x 768;
  800 x 600;
  720p (50/60 Hz);
  640 x 480

• Supported on HDMI only

  4096 x 2160

• Input Video Analogue

  1x VGA; Composite (RCA)

• Input Video Digital

  1x DVI-D (with HDCP); 1x OPS Slot; 2x DisplayPort (with HDCP); 2x HDMI 1.3 (with HDCP)

• Input Audio Analogue

  2x 3.5mm jack

• Input Audio Digital

  2x DisplayPort; 2x HDMI

• Input Control

  1x Remote Control (3.5mm jack); 1x RS232; 2x LAN 100Mbit

• Input Data

  1x microSD (MediaPlayer); 1x USB 1.0 (Downstream); 1x USB 1.0 (MediaPlayer); 1x USB 2.0 (Upstream); 2x USB 1.0 (Compute Module, 1x 5V/2A powered)

• Output Video Digital

  1x DisplayPort (loop through: DisplayPort, OPS slot-in PC); 1x HDMI (loop through: HDMI, OPS slot-in PC, Mediaplayer)

• Output Audio Analogue

  1x 3.5mm jack

• Output Control

  LAN 100Mbit

• Factory Calibration

  Gamma; Intensity; RGB; Uniformity; White Point

• Sensor Calibration (through USB)

  PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration)

• Calibration with Software

  Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; Update Uniformity Correction; White Point

• Calibration Software

  NEC Display Wall Calibrator

• OPS Slot

  Slot Technology: Open pluggable specification (NEC / Intel OPS standard)

• OPS Max. Current / Power Consumption

  3.6A / 58W

• Compute Module Slot

  Slot Technology: Compute Module Slot (NEC proprietary standard)

• Human Sensor

  Optional, external, 4-5m range, triggered actions programmable

• NFC Sensor

  Integrated, 2cm range, free NEC Android App required

• Power Consumption Eco/max.

  110W shipping; 315 (max.)

• Power Savings Mode

  < 0.5; < 2 (Networked Standby)

• Operating Temperature

  +0 to +35 Degree c

• Operating Humidity

  20 to 80%

• Storage Humidity

  10 to 90%

• Storage Temperature

  -20 to 60 Degree C

• Bezel Width

  1.2mm bottom/right; 2.3mm top/left; 3.5mm

• VESA Mounting

  4 holes; 400 x 400mm (FDMI); M6

• Dimensions (W x H x D)

  Without stand: 83.2 x 26.9 x 4″ (2113.4 x 684.2 x 103.8mm)

• Weight

  Without Stand: 56.2 lbs (25.5kg)

• Supported Image Formats

  JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000

• Supported Video Formats

  MP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz

• Supported Audio Formats

  MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling

• Accessories

  Calibration kit (KT-LFD-CC2); Feet (ST-5220); Overframe kit (KT-55UN-OF5); Remote control kit (KT-RC3); Speaker (SP-TF1); Wall mount (PD02VWM MFS 46-55 L/P; PD02VW QR 46-55 L/P; CK02XUN MFS 55 L/P)

• Compute Module Slot

  Raspberry Pi Compute Module 1 and 3

• OPS Slot

  Intel Atom, Celeron and Core i3, i5, i7 Slot-in PCs

• Energy Efficiency

  Annual energy consumption: 217 kWh (based on 4 operating hours per day); Carbon savings meter; Energy efficiency class: B; Human Sensor; LED backlight

• Special Characteristics

  Auto ID assignment; Auto tiling function; Automatic Alarm E-Mails; DICOM Simulation; Frame Comp; HTTP Server; Image flip; Intelligent Wireless Data (based on NFC); NaViSet Administrator 2; TileMatrix; USB Media Player; User input priority definition; User readable log function

• Color Versions

  Black Front Bezel, Black Back Cabinet

• Safety and Ergonomics

  BSMI; CE; EAC; FCC; PSB; RCM; REACH; RoHS; SASO; T V GS; T V S; UL/C-UL; VCCI

• Pixel Failure Class

  ISO 9241-307, Class 2

• Audio

  Optional Speakers (15 W + 15 W)

• Plug and Play

  VESA DDC/CI

• Operating Hours

  24/7
