Description

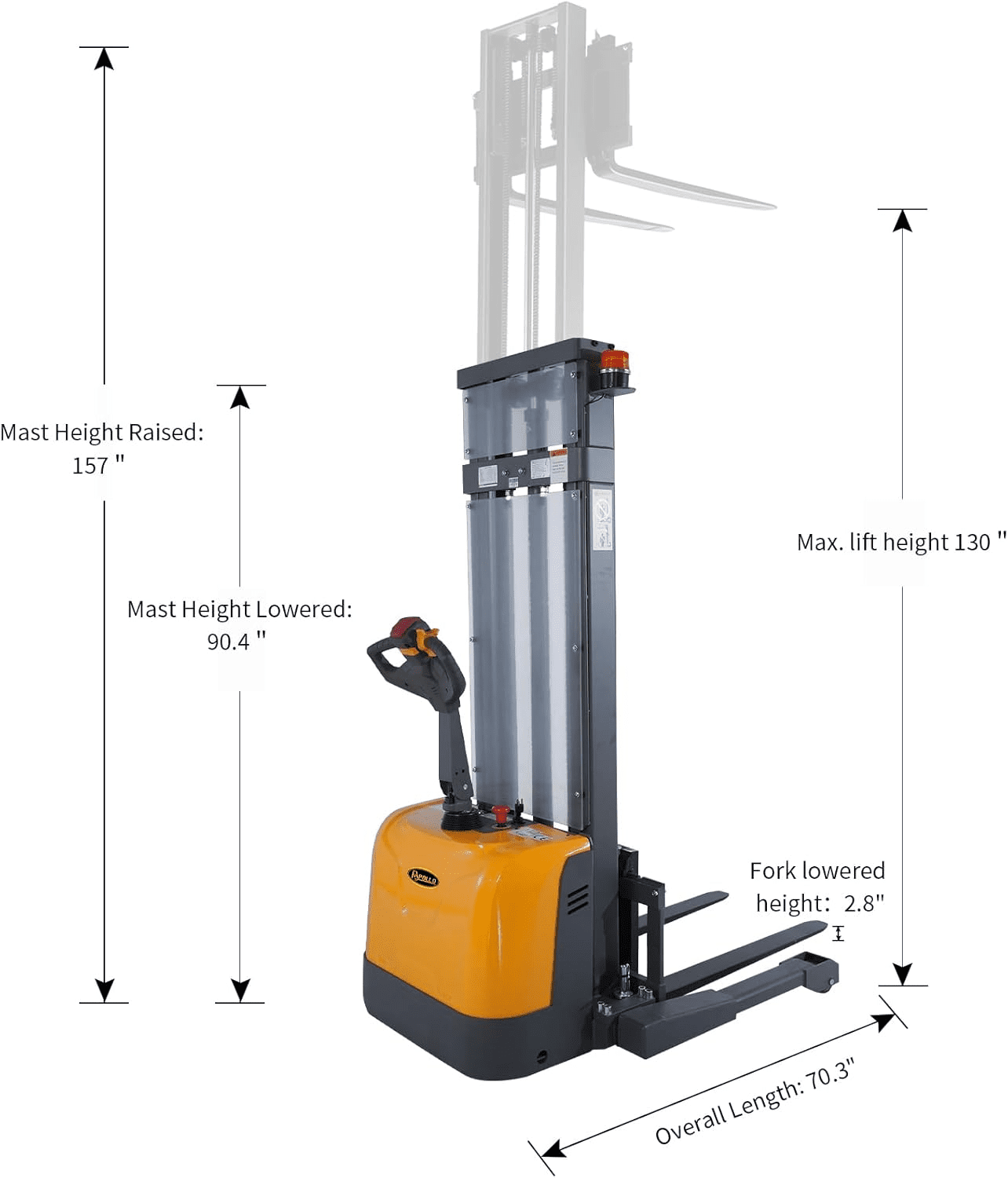

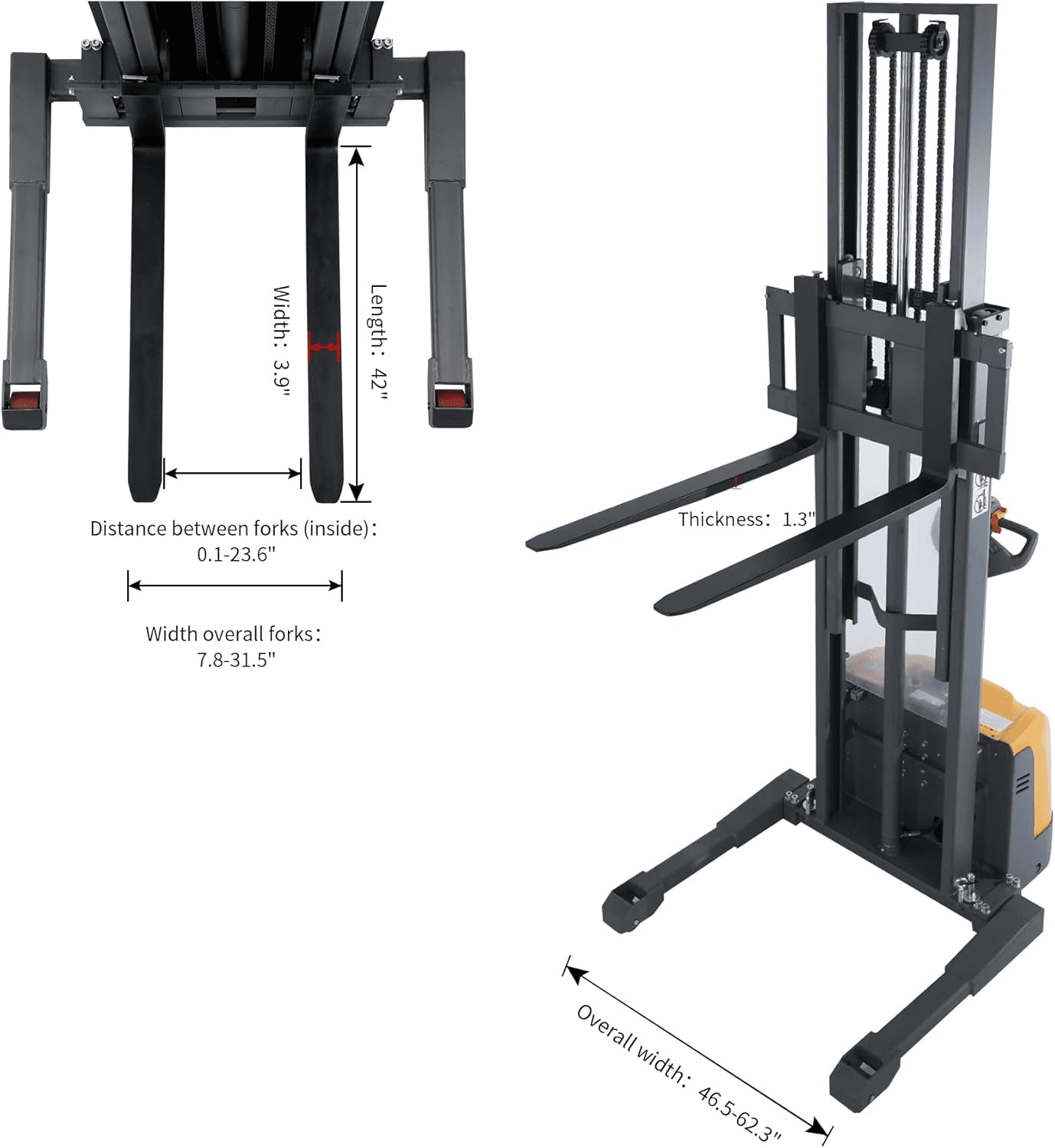

- 3300 lbs Load Capacity, 130″ Max Lifting Height, 90.4″ Mast Lowered Height, 157″ Mast Extended Height, 7.8-31.5″ Width Overall Forks, 46.5″-62.3″ Overall Width

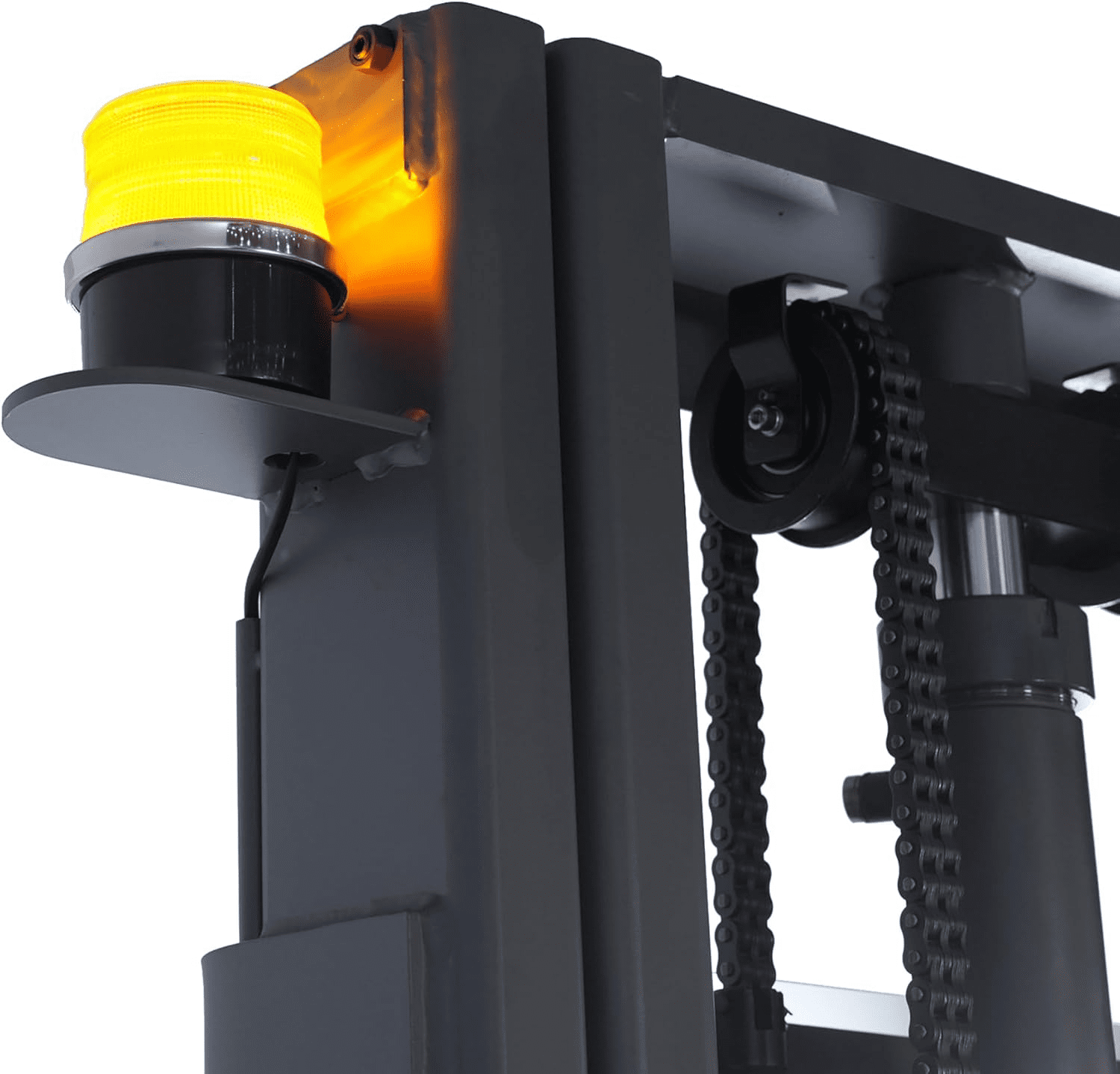

- Enhanced Safety: The cylinder includes a safety explosion-proof valve that prevents free-fall of the load, even if the hydraulic hose ruptures, ensuring operator safety. Features warning lights and a buzzer to ensure safe operation
- Stable Structure: The Stacker features a three-point structure with a centrally mounted drive wheel and low center of gravity for enhanced stability; and a modular layout for easy maintenance

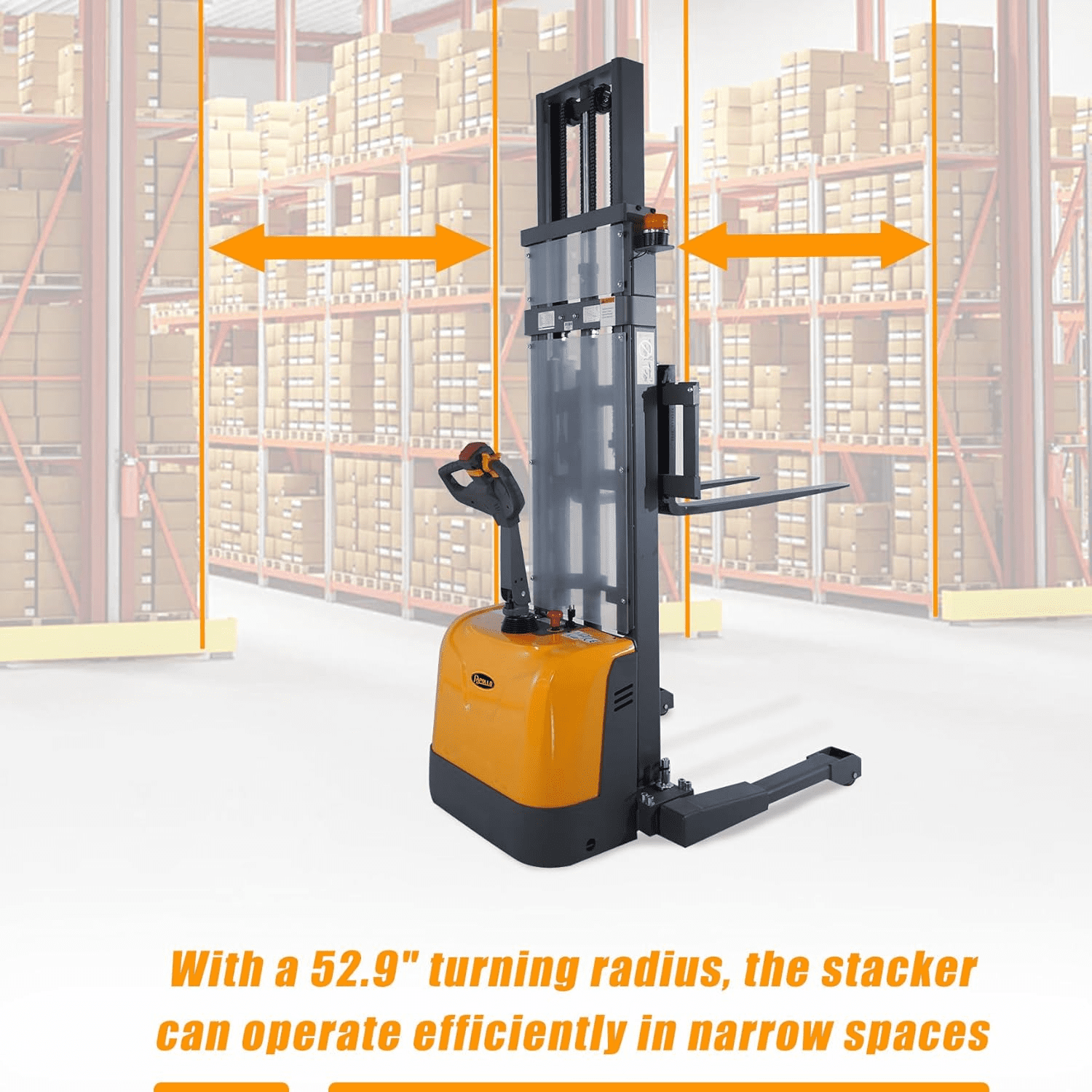

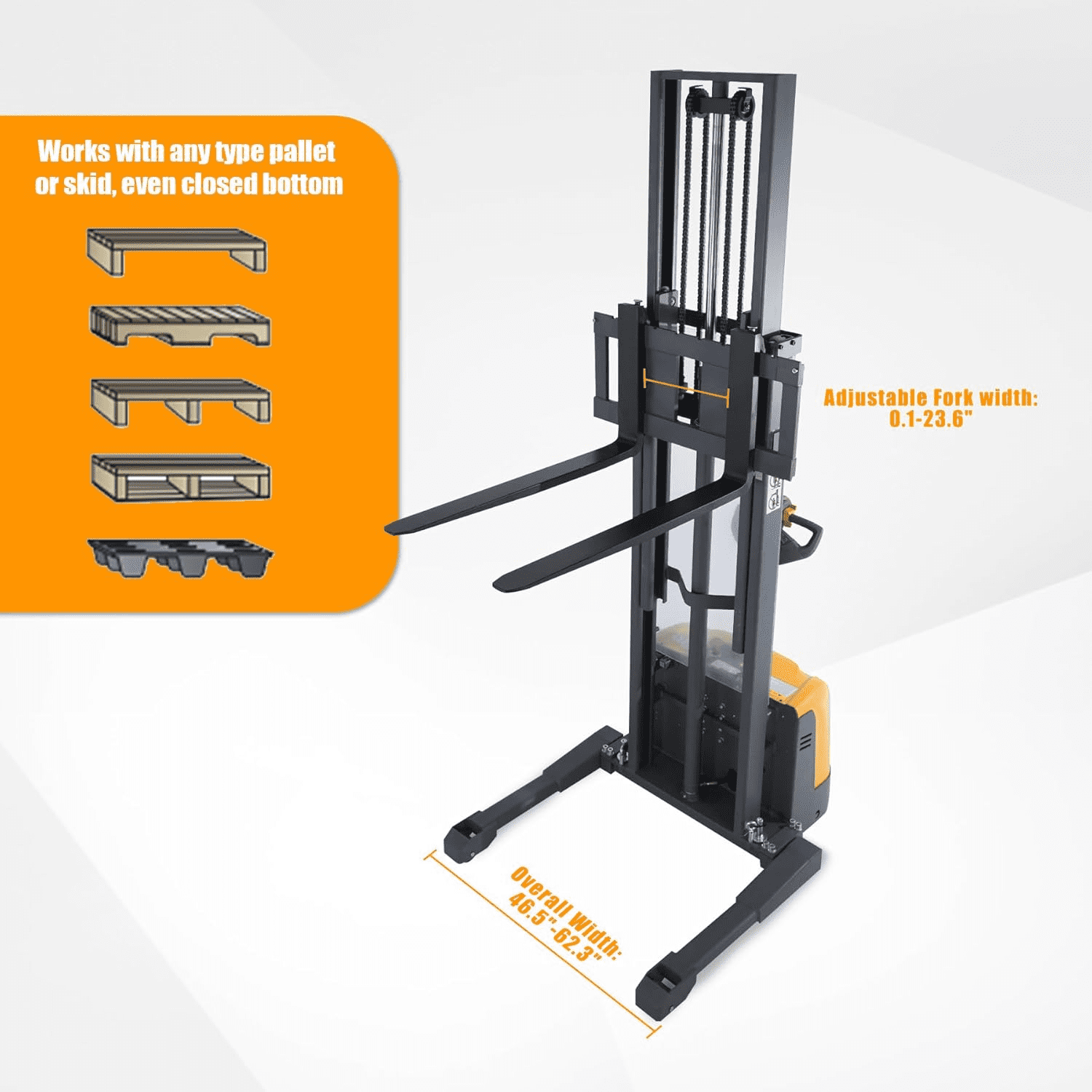

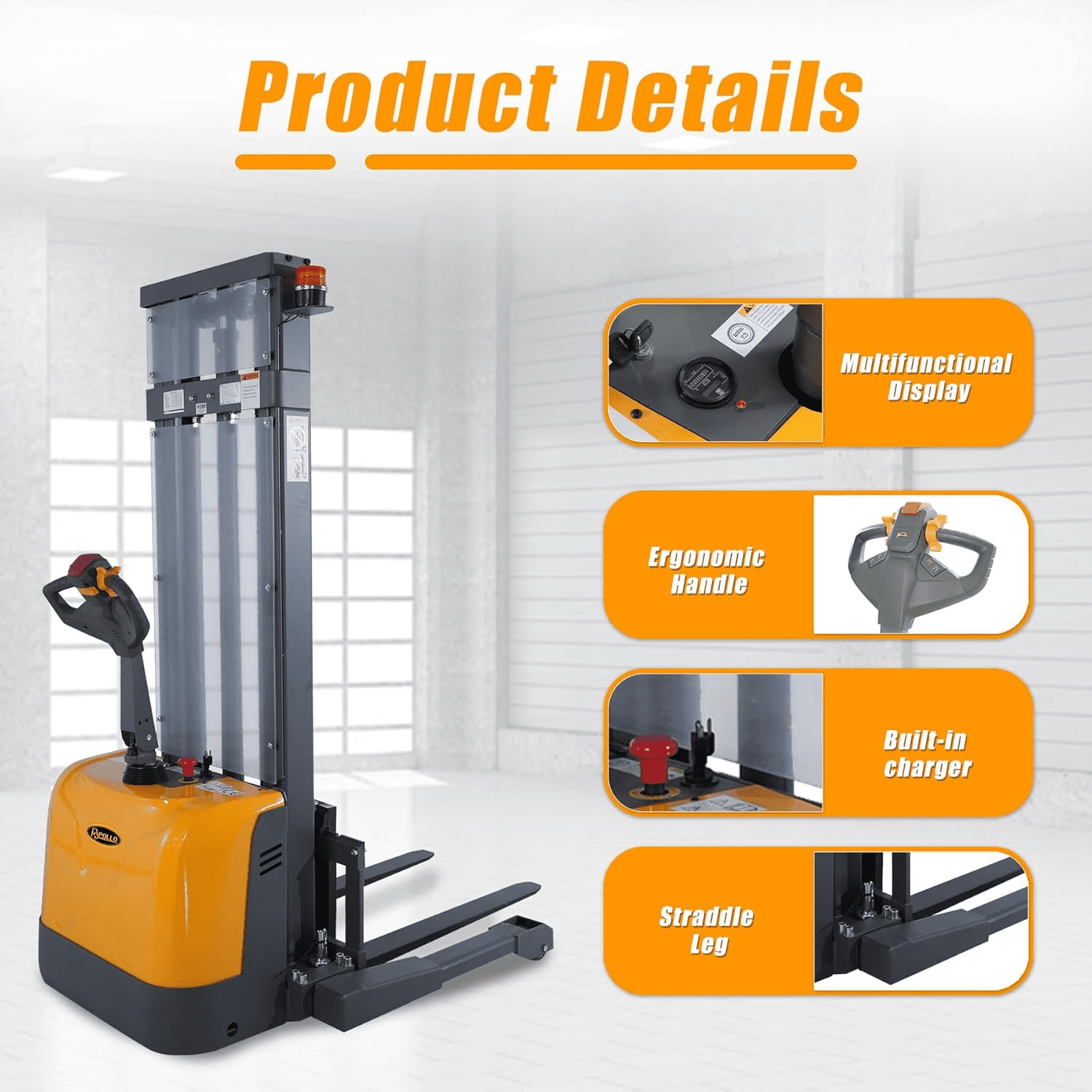

- Convenient and Compact: Built-in charger for easy charging; compact Electric Stacker design with adjustable straddle legs and a minimum turning radius of 52.9″ for efficient operation in tight spaces
- Reliable Electrical Configuration: The power stacker uses a permanent magnet brush-driven motor, and the instrumentation Features low voltage protection that limits lifting, power display, and runtime counter for dependable operation
- The electric stacker is designed for flat surfaces, avoid using it on uneven ground with potholes or steep slopes
- Partial assembly, forks and straddle legs require self-installation
Product Description

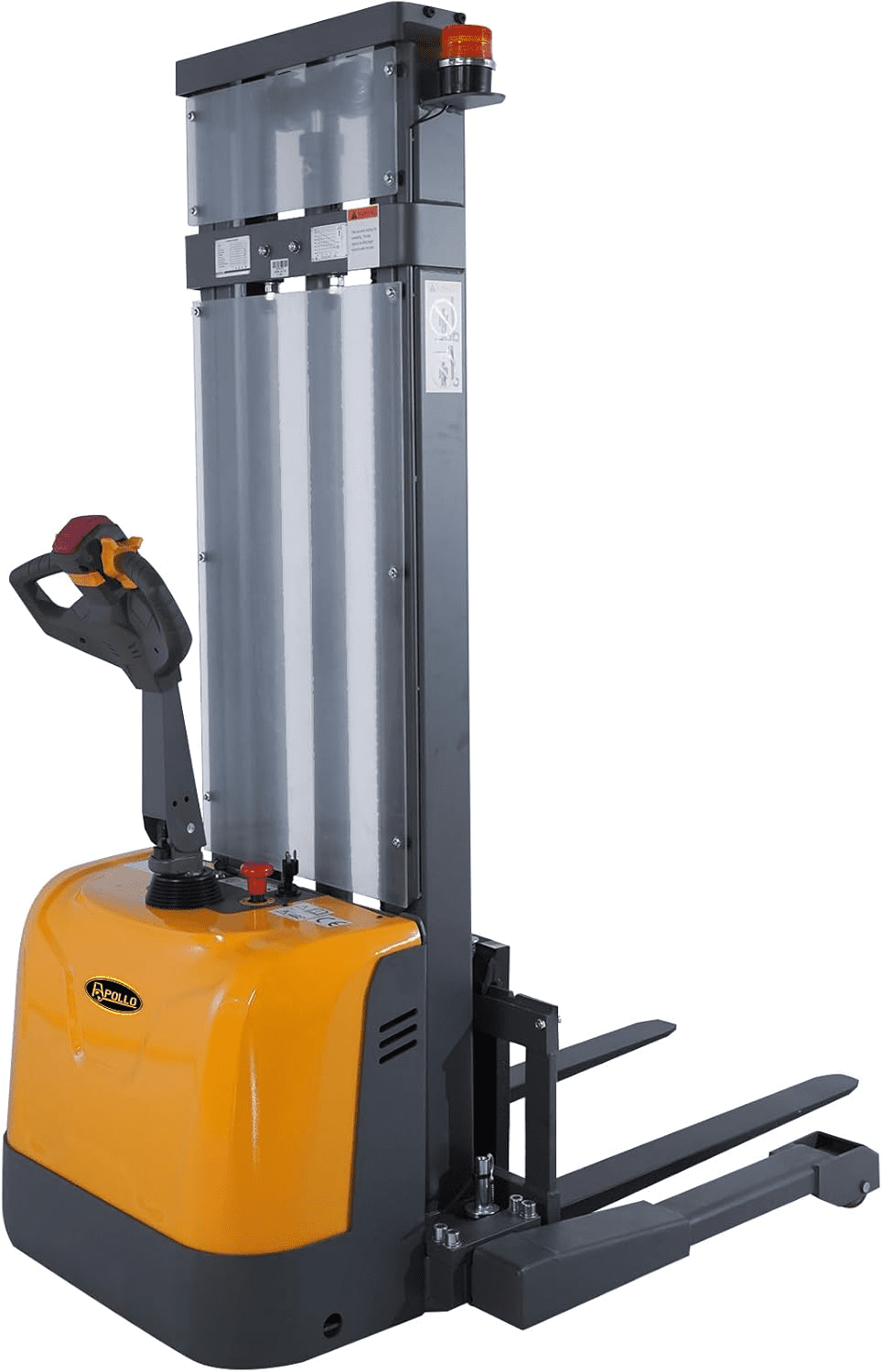

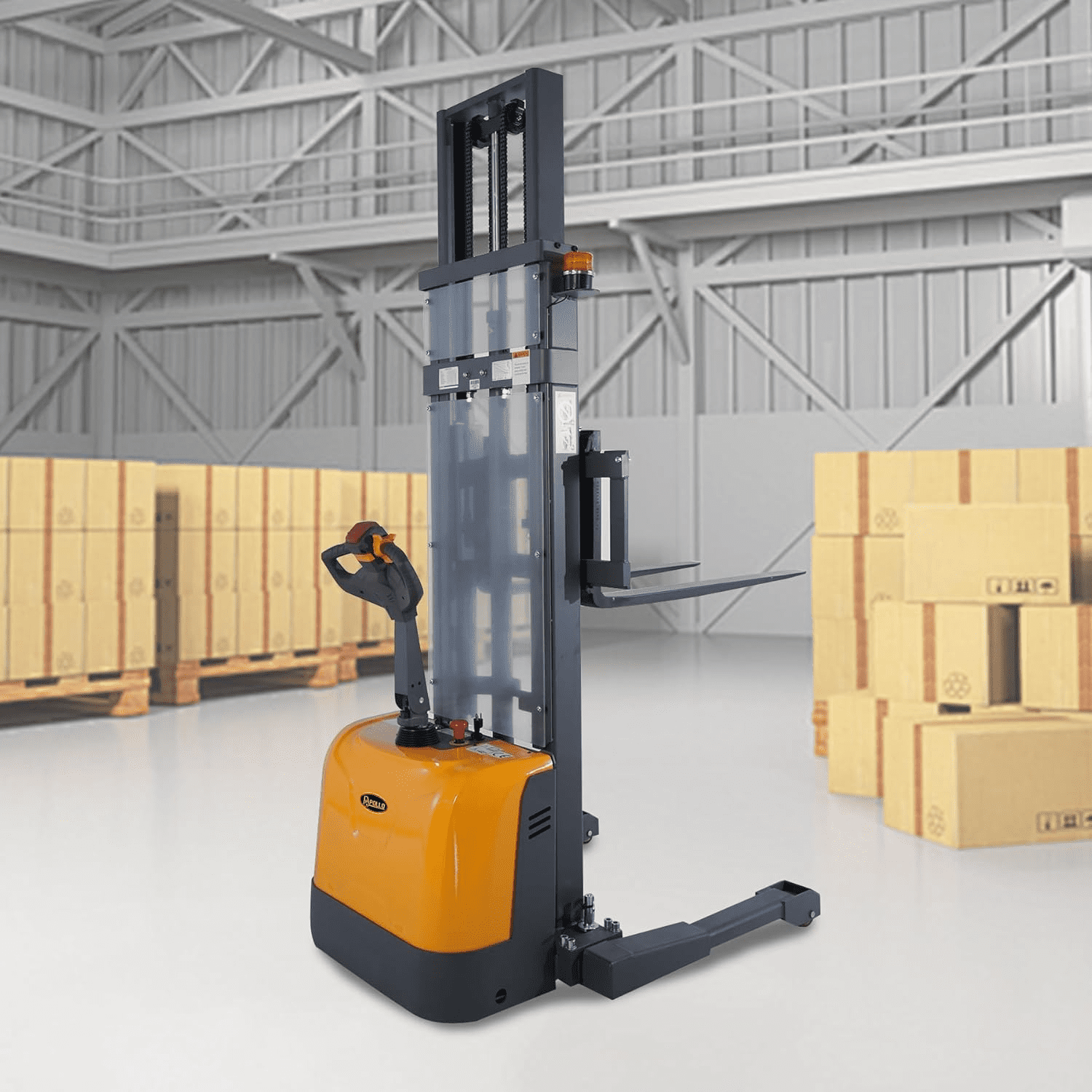

APOLLOLIFT Electric Walkie Stacker, 3300 lbs Capacity 130“ Lift Height
Capacity | 3300 lbs |
Load center | 23.6″ |
Turning radius | 52.9″ |
Fork lowered height | 2.8″ |
Overall length | 70.3″ |
Overall width | 46.5″-62.3″ |
Mast lowered height | 90.4″ |
Battery | 24V/105AH |
Charger | 24V/10A built-in |
